A genetic algorithm (GA) is a search technique used in computing to find exact or approximate solutions to optimization and search problems. Genetic algorithms are categorized as global search heuristics. Genetic algorithms are a particular class of evolutionary algorithms (also known as evolutionary computation) that use techniques inspired by evolutionary biology such as inheritance, mutation, selection, and crossover (also called recombination).

Methodology

Genetic algorithms are implemented as a computer simulation in which a population of abstract representations (called chromosomes or the genotype or the genome) of candidate solutions (called individuals, creatures, or phenotypes) to an optimization problem evolves toward better solutions. Traditionally, solutions are represented in binary as strings of 0s and 1s, but other encodings are also possible. The evolution usually starts from a population of randomly generated individuals and happens in generations. In each generation, the fitness of every individual in the population is evaluated, multiple individuals are stochastically selected from the current population (based on their fitness), and modified (recombined and possibly randomly mutated) to form a new population. The new population is then used in the next iteration of the algorithm. Commonly, the algorithm terminates when either a maximum number of generations has been produced, or a satisfactory fitness level has been reached for the population. If the algorithm has terminated due to a maximum number of generations, a satisfactory solution may or may not have been reached.

Genetic algorithms find application in bioinformatics, phylogenetics, computer science, engineering, economics, chemistry, manufacturing, mathematics, physics and other fields.

A typical genetic algorithm requires two things to be defined:

1. a genetic representation of the solution domain,
2. a fitness function to evaluate the solution domain.

A standard representation of the solution is as an array of bits. Arrays of other types and structures can be used in essentially the same way. The main property that makes these genetic representations convenient is that their parts are easily aligned due to their fixed size, that facilitates simple crossover operation. Variable length representations may also be used, but crossover implementation is more complex in this case. Tree-like representations are explored in Genetic programming and graph-form representations are explored in Evolutionary programming.

The fitness function is defined over the genetic representation and measures the quality of the represented solution. The fitness function is always problem dependent. For instance, in the knapsack problem we want to maximize the total value of objects that we can put in a knapsack of some fixed capacity. A representation of a solution might be an array of bits, where each bit represents a different object, and the value of the bit (0 or 1) represents whether or not the object is in the knapsack. Not every such representation is valid, as the size of objects may exceed the capacity of the knapsack. The fitness of the solution is the sum of values of all objects in the knapsack if the representation is valid, or 0 otherwise. In some problems, it is hard or even impossible to define the fitness expression; in these cases, interactive genetic algorithms are used.

Once we have the genetic representation and the fitness function defined, GA proceeds to initialize a population of solutions randomly, then improve it through repetitive application of mutation, crossover, inversion and selection operators.

Initialization

Initially many individual solutions are randomly generated to form an initial population. The population size depends on the nature of the problem, but typically contains several hundreds or thousands of possible solutions. Traditionally, the population is generated randomly, covering the entire range of possible solutions (the search space). Occasionally, the solutions may be "seeded" in areas where optimal solutions are likely to be found.

Selection

Main article: Selection (genetic algorithm)

During each successive generation, a proportion of the existing population is selected to breed a new generation. Individual solutions are selected through a fitness-based process, where fitter solutions (as measured by a fitness function) are typically more likely to be selected. Certain selection methods rate the fitness of each solution and preferentially select the best solutions. Other methods rate only a random sample of the population, as this process may be very time-consuming.

Most functions are stochastic and designed so that a small proportion of less fit solutions are selected. This helps keep the diversity of the population large, preventing premature convergence on poor solutions. Popular and well-studied selection methods include roulette wheel selection and tournament selection.

Reproduction

Main articles: crossover (genetic algorithm) and mutation (genetic algorithm)

The next step is to generate a second generation population of solutions from those selected through genetic operators: crossover (also called recombination), and/or mutation.

For each new solution to be produced, a pair of "parent" solutions is selected for breeding from the pool selected previously. By producing a "child" solution using the above methods of crossover and mutation, a new solution is created which typically shares many of the characteristics of its "parents". New parents are selected for each child, and the process continues until a new population of solutions of appropriate size is generated.

These processes ultimately result in the next generation population of chromosomes that is different from the initial generation. Generally the average fitness will have increased by this procedure for the population, since only the best organisms from the first generation are selected for breeding, along with a small proportion of less fit solutions, for reasons already mentioned above.

Termination

This generational process is repeated until a termination condition has been reached. Common terminating conditions are

• A solution is found that satisfies minimum criteria
• Fixed number of generations reached
• Allocated budget (computation time/money) reached
• The highest ranking solution's fitness is reaching or has reached a plateau such that successive iterations no longer produce better results
• Manual inspection
• Combinations of the above.

Pseudo-code algorithm

1. Choose initial population
2. Evaluate the fitness of each individual in the population
3. Repeat
   1. Select best-ranking individuals to reproduce
   2. Breed new generation through crossover and mutation (genetic operations) and give birth to offspring
   3. Evaluate the individual fitnesses of the offspring
   4. Replace worst ranked part of population with offspring
4. Until termination

Observations

There are several general observations about the generation of solutions via a genetic algorithm:

• In many problems, GAs may have a tendency to converge towards local optima or even arbitrary points rather than the global optimum of the problem. This means that it does not "know how" to sacrifice short-term fitness to gain longer-term fitness. The likelihood of this occurring depends on the shape of the fitness landscape: certain problems may provide an easy ascent towards a global optimum, others may make it easier for the function to find the local optima. This problem may be alleviated by using a different fitness function, increasing the rate of mutation, or by using selection techniques that maintain a diverse population of solutions, although the No Free Lunch theorem proves that there is no general solution to this problem. A common technique to maintain diversity is to impose a "niche penalty", wherein, any group of individuals of sufficient similarity (niche radius) have a penalty added, which will reduce the representation of that group in subsequent generations, permitting other (less similar) individuals to be maintained in the population. This trick, however, may not be effective, depending on the landscape of the problem. Diversity is important in genetic algorithms (and genetic programming) because crossing over a homogeneous population does not yield new solutions. In evolution strategies and evolutionary programming, diversity is not essential because of a greater reliance on mutation.
• Operating on dynamic data sets is difficult, as genomes begin to converge early on towards solutions which may no longer be valid for later data. Several methods have been proposed to remedy this by increasing genetic diversity somehow and preventing early convergence, either by increasing the probability of mutation when the solution quality drops (called triggered hypermutation), or by occasionally introducing entirely new, randomly generated elements into the gene pool (called random immigrants). Recent research has also shown the benefits of using biological exaptation (or preadaptation) in solving this problem.^[1] Again, evolution strategies and evolutionary programming can be implemented with a so-called "comma strategy" in which parents are not maintained and new parents are selected only from offspring. This can be more effective on dynamic problems.
• GAs cannot effectively solve problems in which the only fitness measure is right/wrong, as there is no way to converge on the solution. (No hill to climb.) In these cases, a random search may find a solution as quickly as a GA.
• Selection is clearly an important genetic operator, but opinion is divided over the importance of crossover versus mutation. Some argue that crossover is the most important, while mutation is only necessary to ensure that potential solutions are not lost. Others argue that crossover in a largely uniform population only serves to propagate innovations originally found by mutation, and in a non-uniform population crossover is nearly always equivalent to a very large mutation (which is likely to be catastrophic). There are many references in Fogel (2006) that support the importance of mutation-based search, but across all problems the No Free Lunch theorem holds, so these opinions are without merit unless the discussion is restricted to a particular problem.
• Often, GAs can rapidly locate good solutions, even for difficult search spaces. The same is of course also true for evolution strategies and evolutionary programming.
• For specific optimization problems and problem instantiations, simpler optimization algorithms may find better solutions than genetic algorithms (given the same amount of computation time). Alternative and complementary algorithms include evolution strategies, evolutionary programming, simulated annealing, Gaussian adaptation, hill climbing, and swarm intelligence (e.g.: ant colony optimization, particle swarm optimization).
• As with all current machine learning problems it is worth tuning the parameters such as mutation probability, recombination probability and population size to find reasonable settings for the problem class being worked on. A very small mutation rate may lead to genetic drift (which is non-ergodic in nature). A recombination rate that is too high may lead to premature convergence of the genetic algorithm. A mutation rate that is too high may lead to loss of good solutions unless there is elitist selection. There are theoretical but not yet practical upper and lower bounds for these parameters that can help guide selection.
• The implementation and evaluation of the fitness function is an important factor in the speed and efficiency of the algorithm.

Variants

The simplest algorithm represents each chromosome as a bit string. Typically, numeric parameters can be represented by integers, though it is possible to use floating point representations. The floating point representation is natural to evolution strategies and evolutionary programming. The notion of real-valued genetic algorithms has been offered but is really a misnomer because it does not really represent the building block theory that was proposed by Holland in the 1970s. This theory is not without support though, based on theoretical and experimental results (see below). The basic algorithm performs crossover and mutation at the bit level. Other variants treat the chromosome as a list of numbers which are indexes into an instruction table, nodes in a linked list, hashes, objects, or any other imaginable data structure. Crossover and mutation are performed so as to respect data element boundaries. For most data types, specific variation operators can be designed. Different chromosomal data types seem to work better or worse for different specific problem domains.

When bit strings representations of integers are used, Gray coding is often employed. In this way, small changes in the integer can be readily effected through mutations or crossovers. This has been found to help prevent premature convergence at so called Hamming walls, in which too many simultaneous mutations (or crossover events) must occur in order to change the chromosome to a better solution.

Other approaches involve using arrays of real-valued numbers instead of bit strings to represent chromosomes. Theoretically, the smaller the alphabet, the better the performance, but paradoxically, good results have been obtained from using real-valued chromosomes.

A very successful (slight) variant of the general process of constructing a new population is to allow some of the better organisms from the current generation to carry over to the next, unaltered. This strategy is known as elitist selection.

Parallel implementations of genetic algorithms come in two flavours. Coarse grained parallel genetic algorithms assume a population on each of the computer nodes and migration of individuals among the nodes. Fine grained parallel genetic algorithms assume an individual on each processor node which acts with neighboring individuals for selection and reproduction. Other variants, like genetic algorithms for online optimization problems, introduce time-dependence or noise in the fitness function.

It can be quite effective to combine GA with other optimization methods. GA tends to be quite good at finding generally good global solutions, but quite inefficient at finding the last few mutations to find the absolute optimum. Other techniques (such as simple hill climbing) are quite efficient at finding absolute optimum in a limited region. Alternating GA and hill climbing can improve the efficiency of GA while overcoming the lack of robustness of hill climbing.

An algorithm that maximizes mean fitness (without any need for the definition of mean fitness as a criterion function) is Gaussian adaptation, See Kjellström 1970^[2], provided that the ontogeny of an individual may be seen as a modified recapitulation of evolutionary random steps in the past and that the sum of many random steps tend to become Gaussian distributed (according to the central limit theorem).

This means that the rules of genetic variation may have a different meaning in the natural case. For instance - provided that steps are stored in consecutive order - crossing over may sum a number of steps from maternal DNA adding a number of steps from paternal DNA and so on. This is like adding vectors that more probably may follow a ridge in the phenotypic landscape. Thus, the efficiency of the process may be increased by many orders of magnitude. Moreover, the inversion operator has the opportunity to place steps in consecutive order or any other suitable order in favour of survival or efficiency. (See for instance [1] or example in travelling salesman problem.)

Gaussian adaptation is able to approximate the natural process by an adaptation of the moment matrix of the Gaussian. So, because very many quantitative characters are Gaussian distributed in a large population, Gaussian adaptation may serve as a genetic algorithm replacing the rules of genetic variation by a Gaussian random number generator working on the phenotypic level. See Kjellström 1996^[3]

Population-based incremental learning is a variation where the population as a whole is evolved rather than its individual members.

Problem domains

Problems which appear to be particularly appropriate for solution by genetic algorithms include timetabling and scheduling problems, and many scheduling software packages are based on GAs. GAs have also been applied to engineering. Genetic algorithms are often applied as an approach to solve global optimization problems.

As a general rule of thumb genetic algorithms might be useful in problem domains that have a complex fitness landscape as recombination is designed to move the population away from local optima that a traditional hill climbing algorithm might get stuck in.

History

Computer simulations of evolution started as early as in 1954 with the work of Nils Aall Barricelli, who was using the computer at the Institute for Advanced Study in Princeton, New Jersey.^{[4] [5]} His 1954 publication was not widely noticed. Starting in 1957 ^[6], the Australian quantitative geneticist Alex Fraser published a series of papers on simulation of artificial selection of organisms with multiple loci controlling a measurable trait. From these beginnings, computer simulation of evolution by biologists became more common in the early 1960s, and the methods were described in books by Fraser and Burnell (1970)^[7] and Crosby (1973)^[8]. Fraser's simulations included all of the essential elements of modern genetic algorithms. In addition, Hans Bremermann published a series of papers in the 1960s that also adopted a population of solution to optimization problems, undergoing recombination, mutation, and selection. Bremermann's research also included the elements of modern genetic algorithms. Other noteworthy early pioneers include Richard Friedberg, George Friedman, and Michael Conrad. Many early papers are reprinted by Fogel (1998).^[9]

Although Barricelli, in work he reported in 1963, had simulated the evolution of ability to play a simple game,^[10] artificial evolution became a widely recognized optimization method as a result of the work of Ingo Rechenberg and Hans-Paul Schwefel in the 1960s and early 1970s - his group was able to solve complex engineering problems through evolution strategies ^{[11] [12] [13]}. Another approach was the evolutionary programming technique of Lawrence J. Fogel, which was proposed for generating artificial intelligence. Evolutionary programming originally used finite state machines for predicting environments, and used variation and selection to optimize the predictive logics. Genetic algorithms in particular became popular through the work of John Holland in the early 1970s, and particularly his book Adaptation in Natural and Artificial Systems (1975). His work originated with studies of cellular automata, conducted by Holland and his students at the University of Michigan. Holland introduced a formalized framework for predicting the quality of the next generation, known as Holland's Schema Theorem. Research in GAs remained largely theoretical until the mid-1980s, when The First International Conference on Genetic Algorithms was held in Pittsburgh, Pennsylvania.

As academic interest grew, the dramatic increase in desktop computational power allowed for practical application of the new technique. In the late 1980s, General Electric started selling the world's first genetic algorithm product, a mainframe-based toolkit designed for industrial processes. In 1989, Axcelis, Inc. released Evolver, the world's second GA product and the first for desktop computers. The New York Times technology writer John Markoff wrote^[14] about Evolver in 1990.

Related techniques

• Ant colony optimization (ACO) uses many ants (or agents) to traverse the solution space and find locally productive areas. While usually inferior to genetic algorithms and other forms of local search, it is able to produce results in problems where no global or up-to-date perspective can be obtained, and thus the other methods cannot be applied.

• Bacteriologic Algorithms (BA) inspired by evolutionary ecology and, more particularly, bacteriologic adaptation. Evolutionary ecology is the study of living organisms in the context of their environment, with the aim of discovering how they adapt. Its basic concept is that in a heterogeneous environment, you can’t find one individual that fits the whole environment. So, you need to reason at the population level. BAs have shown better results than GAs on problems such as complex positioning problems (antennas for cell phones, urban planning, and so on) or data mining.^[15]

• Cross-entropy method The Cross-entropy (CE) method generates candidates solutions via a parameterized probability distribution. The parameters are updated via cross-entropy minimization, so as to generate better samples in the next iteration.

• Cultural algorithm (CA) consists of the population component almost indentical to that of the genetic algorithm and, in addition, a knowledge component called the belief space.

• Evolution strategies (ES, see Rechenberg, 1971) evolve individuals by means of mutation and intermediate and discrete recombination. ES algorithms are designed particularly to solve problems in the real-value domain. They use self-adaptation to adjust control parameters of the search.

• Evolutionary programming (EP) involves populations of solutions with primarily mutation and selection and arbitrary representations. They use self-adaptation to adjust parameters, and can include other variation operations such as combining information from multiple parents.

• Extremal optimization (EO) Unlike GAs, which work with a population of candidate solutions, EO evolves a single solution and makes local modifications to the worst components. This requires that a suitable representation be selected which permits individual solution components to be assigned a quality measure ("fitness"). The governing principle behind this algorithm is that of emergent improvement through selectively removing low-quality components and replacing them with a randomly selected component. This is decidedly at odds with a GA that selects good solutions in an attempt to make better solutions.

• Gaussian adaptation (normal or natural adaptation, abbreviated NA to avoid confusion with GA) is intended for the maximisation of manufacturing yield of signal processing systems. It may also be used for ordinary parametric optimisation. It relies on a certain theorem valid for all regions of acceptability and all Gaussian distributions. The efficiency of NA relies on information theory and a certain theorem of efficiency. Its efficiency is defined as information divided by the work needed to get the information^[16]. Because NA maximises mean fitness rather than the fitness of the individual, the landscape is smoothed such that valleys between peaks may disappear. Therefore it has a certain “ambition” to avoid local peaks in the fitness landscape. NA is also good at climbing sharp crests by adaptation of the moment matrix, because NA may maximise the disorder (average information) of the Gaussian simultaneously keeping the mean fitness constant.

• Genetic programming (GP) is a related technique popularized by John Koza in which computer programs, rather than function parameters, are optimized. Genetic programming often uses tree-based internal data structures to represent the computer programs for adaptation instead of the list structures typical of genetic algorithms.

• Grouping Genetic Algorithm (GGA) is an evolution of the GA where the focus is shifted from individual items, like in classical GAs, to groups or subset of items.^[17] The idea behind this GA evolution proposed by Emanuel Falkenauer is that solving some complex problems, a.k.a. clustering or partitioning problems where a set of items must be split into disjoint group of items in an optimal way, would better be achieved by making characteristics of the groups of items equivalent to genes. These kind of problems include Bin Packing, Line Balancing, Clustering w.r.t. a distance measure, Equal Piles, etc., on which classic GAs proved to perform poorly. Making genes equivalent to groups implies chromosomes that are in general of variable length, and special genetic operators that manipulate whole groups of items. For Bin Packing in particular, a GGA hybridized with the Dominance Criterion of Martello and Toth, is arguably the best technique to date.

• Harmony search (HS) is an algorithm mimicking musicians behaviors in improvisation process.

• Interactive evolutionary algorithms are evolutionary algorithms that use human evaluation. They are usually applied to domains where it is hard to design a computational fitness function, for example, evolving images, music, artistic designs and forms to fit users' aesthetic preference.

• Memetic algorithm (MA), also called hybrid genetic algorithm among others, is a relatively new evolutionary method where local search is applied during the evolutionary cycle. The idea of memetic algorithms comes from memes, which–unlike genes–can adapt themselves. In some problem areas they are shown to be more efficient than traditional evolutionary algorithms.

• Simulated annealing (SA) is a related global optimization technique that traverses the search space by testing random mutations on an individual solution. A mutation that increases fitness is always accepted. A mutation that lowers fitness is accepted probabilistically based on the difference in fitness and a decreasing temperature parameter. In SA parlance, one speaks of seeking the lowest energy instead of the maximum fitness. SA can also be used within a standard GA algorithm by starting with a relatively high rate of mutation and decreasing it over time along a given schedule.

• Stochastic optimization is an umbrella set of methods that includes GAs and numerous other approaches.

• Tabu search (TS) is similar to Simulated Annealing in that both traverse the solution space by testing mutations of an individual solution. While simulated annealing generates only one mutated solution, tabu search generates many mutated solutions and moves to the solution with the lowest energy of those generated. In order to prevent cycling and encourage greater movement through the solution space, a tabu list is maintained of partial or complete solutions. It is forbidden to move to a solution that contains elements of the tabu list, which is updated as the solution traverses the solution space.

Building block hypothesis

Genetic algorithms are simple to implement, but their behavior is difficult to understand. In particular it is difficult to understand why they are often successful in generating solutions of high fitness. The building block hypothesis (BBH) consists of

1. A description of an abstract adaptive mechanism that performs adaptation by recombining "building blocks", i.e. low order, low defining-length schemata with above average fitness.
2. A hypothesis that a genetic algorithm performs adaptation by implicitly and efficiently implementing this abstract adaptive mechanism.

(Goldberg 1989:41) describes the abstract adaptive mechanism as follows:

Short, low order, and highly fit schemata are sampled, recombined [crossed over], and resampled to form strings of potentially higher fitness. In a way, by working with these particular schemata [the building blocks], we have reduced the complexity of our problem; instead of building high-performance strings by trying every conceivable combination, we construct better and better strings from the best partial solutions of past samplings.

Just as a child creates magnificent fortresses through the arrangement of simple blocks of wood [building blocks], so does a genetic algorithm seek near optimal performance through the juxtaposition of short, low-order, high-performance schemata, or building blocks.

(Goldberg 1989) claims that the building block hypothesis is supported by Holland's schema theorem.

The building block hypothesis has been sharply criticized on the grounds that it lacks theoretical justification and experimental results have been published that draw its veracity into question. On the theoretical side, for example, Wright et al. state that

"The various claims about GAs that are traditionally made under the name of the building block hypothesis have, to date, no basis in theory and, in some cases, are simply incoherent"^[18]

On the experimental side uniform crossover was seen to outperform one-point and two-point crossover on many of the fitness functions studied by Syswerda.^[19] Summarizing these results, Fogel remarks that

"Generally, uniform crossover yielded better performance than two-point crossover, which in turn yielded better performance than one-point crossover"^[20]

Syswerda's results contradict the building block hypothesis because uniform crossover is extremely disruptive of short schemata whereas one and two-point crossover are more likely to conserve short schemata and combine their defining bits in children produced during recombination.

The debate over the building block hypothesis demonstrates that the issue of how GAs "work", (i.e. perform adaptation) is currently far from settled. (See the External Links section for more about this)

Applications

• Artificial Creativity
• Automated design, including research on composite material design and multi-objective design of automotive components for crashworthiness, weight savings, and other characteristics.
• Automated design of mechatronic systems using bond graphs and genetic programming (NSF).
• Automated design of industrial equipment using catalogs of exemplar lever patterns.
• Automated design of sophisticated trading systems in the financial sector.
• Building phylogenetic trees.^[21]
• Calculation of Bound states and Local-density approximations.
• Chemical kinetics (gas and solid phases)
• Configuration applications, particularly physics applications of optimal molecule configurations for particular systems like C60 (buckyballs).
• Container loading optimization.
• Code-breaking, using the GA to search large solution spaces of ciphers for the one correct decryption.
• Design of water distribution systems.
• Distributed computer network topologies.
• Electronic circuit design, known as Evolvable hardware.
• File allocation for a distributed system.
• Parallelization of GAs/GPs including use of hierarchical decomposition of problem domains and design spaces nesting of irregular shapes using feature matching and GAs.
• Game Theory Equilibrium Resolution.
• Gene expression profiling analysis.^[22]
• Learning Robot behavior using Genetic Algorithms.
• Learning fuzzy rule base using genetic algorithms.
• Linguistic analysis, including Grammar Induction and other aspects of Natural Language Processing (NLP) such as word sense disambiguation.
• Marketing Mix Analysis
• Mobile communications infrastructure optimization.
• Molecular Structure Optimization (Chemistry).
• Multiple population topologies and interchange methodologies.
• Multiple sequence alignment.^[23]
• Operon prediction.^[24]
• Optimisation of data compression systems, for example using wavelets.
• Protein folding and protein/ligand docking.^[25]
• Plant floor layout.
• Representing rational agents in economic models such as the cobweb model.
• RNA structure prediction.^[26]
• Scheduling applications, including job-shop scheduling. The objective being to schedule jobs in a sequence dependent or non-sequence dependent setup environment in order to maximize the volume of production while minimizing penalties such as tardiness.
• Selection of optimal mathematical model to describe biological systems.
• Software engineering
• Solving the machine-component grouping problem required for cellular manufacturing systems.
• Tactical asset allocation and international equity strategies.
• Timetabling problems, such as designing a non-conflicting class timetable for a large university.
• Training artificial neural networks when pre-classified training examples are not readily obtainable (neuroevolution).
• Traveling Salesman Problem.
• Finding hardware bugs. ^{[27] [28]}

References

External links

• ParadisEO A powerful C++ framework dedicated to the reusable design of metaheuristics, included genetic algorithms.

• A Practical Tutorial on Genetic Algorithm Programming a Genetic Algorithm step by step.

• A Genetic Algorithm Tutorial by Darrell Whitley Computer Science Department Colorado State University An excellent tutorial with lots of theory

• A Fortran code (PIKAIA) with a tutorial by Paul Charbonneau and Barry Knapp, National Center for Atmospheric Research. An excellent tutorial and a versatile public domain code. PIKAIA is also available in a version for Microsoft Excel, as well as a parallel processing version.
• VectorGA A vectorized implementation of a genetic algorithm in Matlab.
• The Dubious History of the Building Block Hypothesis

Genetic programming (GP) is an evolutionary algorithm based methodology inspired by biological evolution to find computer programs that perform a user-defined task. Therefore it is a machine learning technique used to optimize a population of computer programs according to a fitness landscape determined by a program's ability to perform a given computational task. The roots of GP begin with the evolutionary algorithms first utilized by Nils Aall Barricelli in 1954 as applied to evolutionary simulations but evolutionary algorithms became widely recognized as optimization methods as a result of the work of Ingo Rechenberg in the 1960s and early 1970s - his group was able to solve complex engineering problems through evolution strategies (1971 PhD thesis and resulting 1973 book). Also highly influential was the work of John Holland in the early 1970s, and particularly his 1975 book. The first results on the GP methodology were reported by Stephen F. Smith (1980)^[1] and Nichael L. Cramer (1985),^[2]. In 1981 Forsyth reported the evolution of small programs in forensic science for the UK police. John R. Koza is a main proponent of GP and has pioneered the application of genetic programming in various complex optimization and search problems ^[3].

GP is very computationally intensive and so in the 1990s it was mainly used to solve relatively simple problems. But more recently, thanks to improvements in GP technology and to the exponential growth in CPU power, GP produced many novel and outstanding results in areas such as quantum computing, electronic design, game playing, sorting, searching and many more.^[4] These results include the replication or development of several post-year-2000 inventions. GP has also been applied to evolvable hardware as well as computer programs. There are several GP patents listed in the web site ^[5].

Developing a theory for GP has been very difficult and so in the 1990s GP was considered a sort of outcast among search techniques. But after a series of breakthroughs in the early 2000s, the theory of GP has had a formidable and rapid development. So much so that it has been possible to build exact probabilistic models of GP (schema theories and Markov chain models).

Chromosome representation

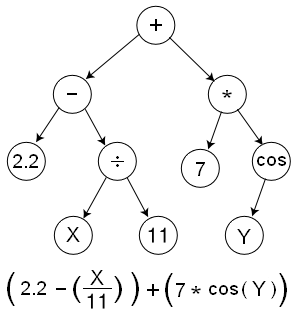

A function represented as a tree structure

GP evolves computer programs, traditionally represented in memory as tree structures. Trees can be easily evaluated in a recursive manner. Every tree node has an operator function and every terminal node has an operand, making mathematical expressions easy to evolve and evaluate. Thus traditionally GP favors the use of programming languages that naturally embody tree structures (for example, Lisp; other functional programming languages are also suitable).

Non-tree representations have been suggested and successfully implemented, such as the simpler linear genetic programming which suits the more traditional imperative languages [see, for example, Banzhaf et al. (1998)]. The commercial GP software Discipulus,^[6] uses AIM, automatic induction of binary machine code^[7] to achieve better performance.^[8] MicroGP^[9] uses a representation similar to linear GP to generate programs that fully exploit the syntax of a given assembly language.

Genetic operators

Crossover

The main operators used in evolutionary algorithms such as GP are crossover and mutation. Crossover is applied on an individual by simply switching one of its nodes with another node from another individual in the population. With a tree-based representation, replacing a node means replacing the whole branch. This adds greater effectiveness to the crossover operator. The expressions resulting from crossover are very much different from their initial parents.

The following code suggests a simple implementation of individual deformation using crossover:

individual. Children[randomChildIndex] = otherIndividual.Children[randomChildIndex];

Mutation

Mutation affects an individual in the population. It can replace a whole node in the selected individual, or it can replace just the node's information. To maintain integrity, operations must be fail-safe or the type of information the node holds must be taken into account. For example, mutation must be aware of binary operation nodes, or the operator must be able to handle missing values.

A simple piece of code:

individual. Information = randomInformation;

or

individual = generateNewIndividual;

Meta-Genetic Programming

Meta-Genetic Programming is the proposed meta learning technique of evolving a genetic programming system using genetic programming itself. ^[10]. It suggests that chromosomes, crossover, and mutation were themselves evolved, therefore like their real life counterparts should be allowed to change on their own rather than being determined by a human programmer. Meta-GP was proposed by Jürgen Schmidhuber in 1987 ^[11]; it is a recursive but terminating algorithm, allowing it to avoid infinite recursion.

Critics of this idea often say this approach is overly broad in scope. However, it might be possible to constrain the fitness criterion onto a general class of results, and so obtain an evolved GP that would more efficiently produce results for sub-classes. This might take the form of a Meta evolved GP for producing human walking algorithms which is then used to evolve human running, jumping, etc. The fitness criterion applied to the Meta GP would simply be one of efficiency.

For general problem classes there may be no way to show that Meta GP will reliably produce results more efficiently than a created algorithm other than exhaustion. The same holds for standard GP and other search algorithms, of course.

Notes

1. ^ http://www-2.cs.cmu.edu/~sfs/
2. ^ http://www.sover.net/~nichael/
3. ^ http://www.genetic-programming.com/
4. ^ http://www.genetic-programming.com/humancompetitive.html
5. ^ http://www.genetic-programming.com/patents.html
6. ^ http://www.aimlearning.com
7. ^ (Peter Nordin, 1997, Banzhaf et al., 1998, Section 11.6.2-11.6.3)
8. ^ http://www.aimlearning.com/aigp31.pdf
9. ^ http://www.cad.polito.it/research/microgp.html
10. ^ http://www.helpmefigurethisout.com/
11. ^ http://www.idsia.ch/~juergen/diploma.html

See also

• Genetic representation
• Gene expression programming
• Bio-inspired computing

Bibliography

• Banzhaf, W., Nordin, P., Keller, R.E., Francone, F.D. (1998), Genetic Programming: An Introduction: On the Automatic Evolution of Computer Programs and Its Applications, Morgan Kaufmann
• Barricelli, Nils Aall (1954), Esempi numerici di processi di evoluzione, Methodos, pp. 45-68.
• Crosby, Jack L. (1973), Computer Simulation in Genetics, John Wiley & Sons, London.
• Cramer, Nichael Lynn (1985), "A representation for the Adaptive Generation of Simple Sequential Programs" in Proceedings of an International Conference on Genetic Algorithms and the Applications, Grefenstette, John J. (ed.), Carnegie Mellon University
• Fentress, Sam W (2005), Exaptation as a means of evolving complex solutions, MA Thesis, University of Edinburgh. (pdf)
• Fogel, David B. (2000) Evolutionary Computation: Towards a New Philosophy of Machine Intelligence IEEE Press, New York.
• Fogel, David B. (editor) (1998) Evolutionary Computation: The Fossil Record, IEEE Press, New York.
• Forsyth, Richard (1981), BEAGLE A Darwinian Approach to Pattern Recognition Kybernetes, Vol. 10, pp. 159-166.
• Fraser, Alex S. (1957), Simulation of Genetic Systems by Automatic Digital Computers. I. Introduction. Australian Journal of Biological Sciences vol. 10 484-491.
• Fraser, Alex and Donald Burnell (1970), Computer Models in Genetics, McGraw-Hill, New York.
• Holland, John H (1975), Adaptation in Natural and Artificial Systems, University of Michigan Press, Ann Arbor
• Koza, J.R. (1990), Genetic Programming: A Paradigm for Genetically Breeding Populations of Computer Programs to Solve Problems, Stanford University Computer Science Department technical report STAN-CS-90-1314. A thorough report, possibly used as a draft to his 1992 book.
• Koza, J.R. (1992), Genetic Programming: On the Programming of Computers by Means of Natural Selection, MIT Press
• Koza, J.R. (1994), Genetic Programming II: Automatic Discovery of Reusable Programs, MIT Press
• Koza, J.R., Bennett, F.H., Andre, D., and Keane, M.A. (1999), Genetic Programming III: Darwinian Invention and Problem Solving, Morgan Kaufmann
• Koza, J.R., Keane, M.A., Streeter, M.J., Mydlowec, W., Yu, J., Lanza, G. (2003), Genetic Programming IV: Routine Human-Competitive Machine Intelligence, Kluwer Academic Publishers
• Langdon, W. B., Poli, R. (2002), Foundations of Genetic Programming, Springer-Verlag
• Nordin, J.P., (1997) Evolutionary Program Induction of Binary Machine Code and its Application. Krehl Verlag, Muenster, Germany.
• Rechenberg, I. (1971): Evolutionsstrategie - Optimierung technischer Systeme nach Prinzipien der biologischen Evolution (PhD thesis). Reprinted by Fromman-Holzboog (1973).
• Schmidhuber, J. (1987). Evolutionary principles in self-referential learning. (On learning how to learn: The meta-meta-... hook.) Diploma thesis, Institut f. Informatik, Tech. Univ. Munich.
• Smith, S.F. (1980), A Learning System Based on Genetic Adaptive Algorithms, PhD dissertation (University of Pittsburgh)
• Smith, Jeff S. (2002), Evolving a Better Solution, Developers Network Journal, March 2002 issue

External links

• Mailing list genetic_programming@yahoogroups.com
• The Hitch-Hiker's Guide to Evolutionary Computation
• John Koza's Genetic Programming Site
• Jürgen Schmidhuber's GP Site, with pre-Koza GP papers (1987)
• Jürgen Schmidhuber's Meta-GP thesis (1987)
• GP bibliography
• Meta-Genetic Programming Site
• People who work on GP
• Global Optimization Techniques and Genetic Programming Applied to Distributed Computing

Implementations:

• Online moonlander demo (JavaScript)
• Demo applet of a genetic algorithm solving TSPs and VRPTW problems (.NET and Java)
• JAGA - Extensible and pluggable open source API for implementing genetic algorithms and genetic programming applications (Java)
• GPE - Framework for conducting experiments in Genetic Programming (.NET)
• lalena.com - A Genetic Program for simulating ant food collection behaviors. Free download (.NET)
• DGPF - simple Genetic Programming research system (Java)
• PMDGP - object oriented framework for solving genetic programming problems (C++)
• JGAP - Java Genetic Algorithms and Genetic Programming, an open-source framework (Java)
• n-genes - Java Genetic Algorithms and Genetic Programming (stack oriented) framework (Java)
• DRP - Directed Ruby Programming, Genetic Programming & Grammatical Evolution Library (Ruby)
• GPLAB - A Genetic Programming Toolbox for MATLAB (MATLAB)
• GPTIPS - Genetic Programming Tool for MATLAB (MATLAB)
• PyRobot - Evolutionary Algorithms (GA + GP) Modules, Open Source (Python)
• PerlGP - Grammar-based genetic programming in Perl (Perl)
• GAlib - Object oriented framework with 4 different GA implementations and 4 representation types (arbitrary derivations possible) (C++)
• Java GALib - Source Forge open source Java genetic algorithm library, complete with Javadocs and examples (see bottom of page) (Java)
• LAGEP. Supporting single/multiple population genetic programming to generate mathematical functions. Open Source, OpenMP used. (C/C++)
• PushGP, a strongly typed, stack-based genetic programming system that allows GP to manipulate its own code (auto-constructive evolution) (Lisp/C++/Javascript/Java)

Possibly most used:

• ECJ - Evolutionary Computation/Genetic Programming research system (Java)
• Beagle - Open BEAGLE, a versatile EC framework (C++ with STL)
• EO Evolutionary Computation Framework (C++ with static polymorphism)
• GPC++ - Genetic Programming C++ Class Library (C++)

Companies:

• Institute of Robotics in Scandinavia AB (iRobis)
• AITellU AB
• Gepsoft Limited
• RML Technologies, Inc.
• Quantum Trader (Trading System application)
